General System

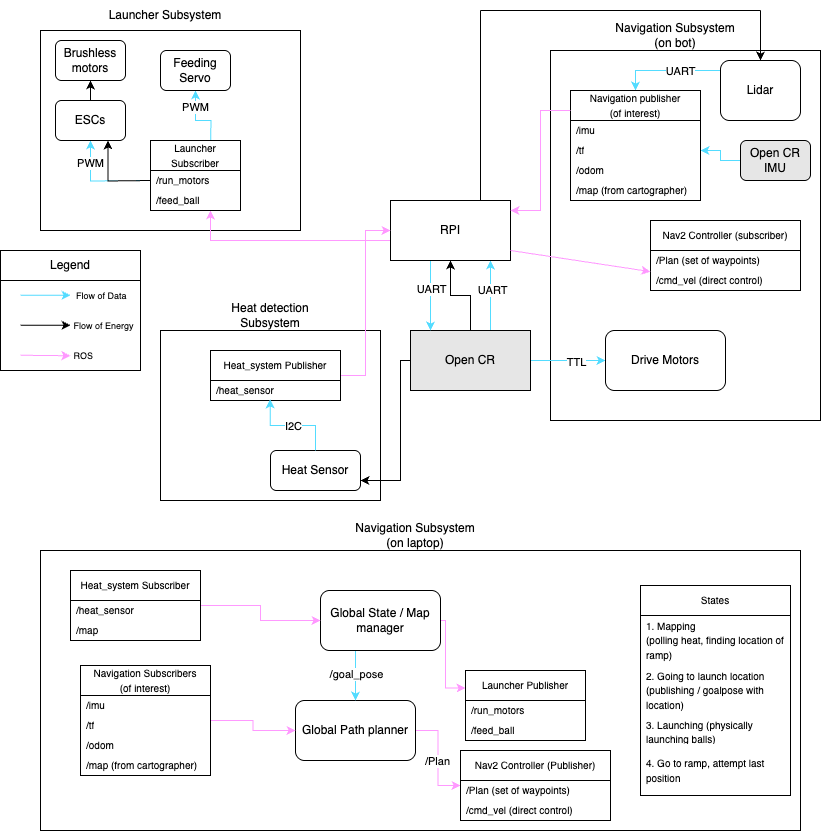

We have decomposed the system into four interdependent subsystems:

• Navigation (Bot)
  Handles real-time path planning, localization (via LIDAR and odometry), and map generation using the ROS2 Nav2 stack.

• Navigation (Laptop)
  Visualizes map data, monitors robot state via RViz and topics, and can support external decision logging or override mechanisms.

• Heat Detection
  Uses dual AMG8833 thermal sensors, feeding temperature grids into the controller. Detection triggers further localization using filtered LIDAR data to identify global heat source coordinates.

• Launcher
  A dual flywheel launching mechanism actuated by motor commands. The launcher is synchronized with navigation goals to engage detected heat targets.

---

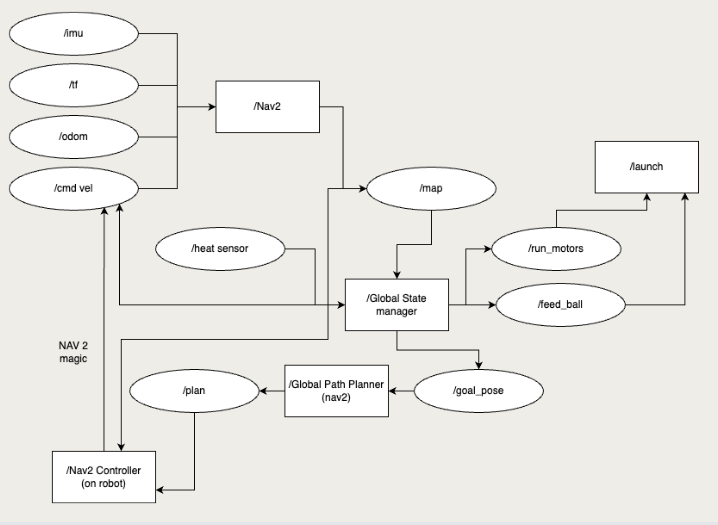

Each Subsystem is controlled by a global controller that handles all high level logic, this was conveyed to each subsystem using ROS2 Topics, the RQT graph for communication is below:

GlobalController: The Brain of the Bot

The GlobalController Python node runs in multi-threaded execution, enabling:

• Sensor polling at 10 Hz via the fast loop for IMU, LIDAR, and temperature grid updates
• State decision-making at 1 Hz in the control loop
• Concurrent execution of callbacks and services

It handles:

• State transitions across states such as:
  • Exploratory_Mapping
  • Goal_Navigation
  • Launching_Balls
  • Imu_Interrupt
  • Attempting_Ramp
• Autonomous heat source targeting using a KMeans-based clustering algorithm

Concurrency & Multithreading

The node leverages a MultiThreadedExecutor with concurrent timers and sensor callbacks, ensuring responsive, real-time robot control:

• Fast Loop (10 Hz):
  Executed using self.fast_timer, this loop:
  • Monitors IMU pitch changes for hazard detection
  • Quickly cancels active goals if a ramp or incline is detected (Imu_Interrupt)
  • Publishes live visualization markers (publish_visualization_markers)
  • Avoids blocking calls to ensure low-latency sensor response
• Control Loop (1 Hz):
  Executed using self.control_loop_timer, this loop:
  • Makes high-level decisions based on current FSM state
  • Triggers frontier exploration (dijk_mover), goal navigation, and ramp handling
  • Performs goal planning and ball launching logic

System Flow Overview

1. Startup Phase
   Upon initialization, the robot begins in the Initializing state, waiting for valid map and sensor data. Once available, it enters the Exploratory_Mapping phase.

2. Exploration Phase
   The robot autonomously explores the maze using frontier-based navigation. As thermal targets are detected, their global coordinates are recorded and visualized in RViz.

3. Clustering & Goal Planning
   After the map is completed, detected heat points are clustered into goal positions. The robot then sequentially navigates to each target.

4. Launching Phase
   At each goal, the robot stops, aligns itself, and launches a ping pong ball toward the heat source using the dual flywheel launcher.

5. IMU Interrupt Handling
   During any phase, if a pitch anomaly is detected (e.g., going up a ramp), the system triggers the Imu_Interrupt state. The robot cancels current goals, marks unsafe zones in the occupancy grid, and replans its route.

6. Ramp Engagement (Optional)
   If enabled, after all heat targets are engaged, the robot attempts to approach a ramp zone and perform a final launch

---

Sensor Fusion & Decision Logic

• Thermal + LIDAR Fusion
  When heat is detected, a laser scan in the direction of the sensor’s FOV is filtered and binned. The average angle and distance are computed and transformed into world coordinates.

• IMU Feedback Loop
  Pitch data is processed in real-time. A rolling average is used to detect sudden inclinations that may signal a ramp or collision.

• Occupancy Grid Manipulation
  The robot actively updates its map, sealing off dangerous or previously explored zones using adaptive flood-fill techniques and direct occupancy marking.

---

Communication Infrastructure

All modules interact via ROS2 topics with appropriate QoS profiles. Key topics include:

• cmd_vel: Motion commands
• scan: Laser data
• odom: Odometry
• temperature_sensor_1/2: Heat grid data
• flywheel: Launch trigger
• /visualization_markers: Real-time RViz feedback for heat and sealed regions

Communication is optimized for real-time response and modularity, with feedback loops embedded into every decision node.

---

Why This Design?

This architecture allows us to:

• Run real-time behaviors in parallel
• Decompose complex behavior
• Replan dynamically based on ramp location, sensor feedback, or BT tree failure

---

Extra information on State Transitions and how they are actually defined in the code

1. Transition from Initializing → Exploratory_Mapping

def initialise(self):
    self.wait_for_map()
    pos = self.get_robot_global_position()
    while pos is None:
        pos = self.get_robot_global_position()
        time.sleep(0.2)
    x , y , yaw = pos
    self.initial_yaw = yaw

• This method waits for an occupancy grid (wait_for_map) and valid TF position before setting the robot’s initial orientation.
• Then, self.set_state(GlobalController.State.Exploratory_Mapping) is called in the control_loop.

---

2. Transition to Imu_Interrupt

def fast_loop(self):
    ...
    if self.IMU_interrupt_check() and not self.hit_ramped:
        self.set_state(GlobalController.State.Imu_Interrupt)

• This transition can occur during Exploratory_Mapping, Goal_Navigation, or Go_to_Heat_Souce.
• The trigger is based on self.recent_pitch_avg > self.imu_threshold * self.global_pitch_avg or > self.imu_abs_threshold.

---

3. Transition from Imu_Interrupt → Exploratory_Mapping

def control_loop(self):
    ...
    elif bot_current_state == GlobalController.State.Imu_Interrupt:
        self.hit_ramped = True
        self.ramp_location = self.get_robot_grid_position()
        self.mark_area_around_robot_as_occ(self.ramp_location[0], self.ramp_location[1], 7)
        x ,y, yaw = self.previous_position[0]
        self.nav_to_goal(x,y)
        time.sleep(20)
        self.set_state(GlobalController.State.Exploratory_Mapping)

• After marking the ramp location as occupied and reversing, the robot returns to mapping with the ramp avoided.

---

4. Transition from Exploratory_Mapping → Goal_Navigation

def control_loop(self):
    ...
    if self.finished_mapping:
        self.max_heat_locations = self.find_centers(self.clusters)
        self.set_state(GlobalController.State.Goal_Navigation)

• Triggered when self.finished_mapping is True (after all frontiers explored via dijk_mover()).

---

5. Transition to Launching_Balls

def control_loop(self):
    ...
    for location in self.max_heat_locations:
        ...
        self.nav_to_goal(world_x, world_y)
        ...
        self.launch_ball()
    self.set_state(GlobalController.State.Attempting_Ramp)

• The robot sends a Nav2 goal, then launches a ping pong ball at each goal location.
• This implicitly represents the Launching_Balls state as a sub-action before transitioning to Attempting_Ramp.

---

6. Transition to Attempting_Ramp

def control_loop(self):
    ...
    elif bot_current_state == GlobalController.State.Goal_Navigation:
        ...
        self.set_state(GlobalController.State.Attempting_Ramp)

• This happens once all heat sources in self.max_heat_locations have been visited.

---

7. Final Ascent Handling in Attempting_Ramp

def control_loop(self):
    ...
    elif bot_current_state == GlobalController.State.Attempting_Ramp:
        x,y = self.grid_to_world(self.ramp_location[0], self.ramp_location[1])
        self.nav_to_goal(x , y, self.initial_yaw)
        time.sleep(30)
        self.run_pd_until_obstacle(self.initial_yaw)
        self.launch_ball()

• The robot ascends the ramp and launches a final ball.

---
